Electrocoating

A uniform, corrosion resistant finish applied through the electrodeposition process, making it ideal for parts with complex geometries and strict performance requirements. Cathodic Ecoat is cutting edge technology for non-UV applications such as under body components. It is also an ideal primer coat for additional topcoats such as powder and wet spray applications.

  • Electrocoated part, example 1

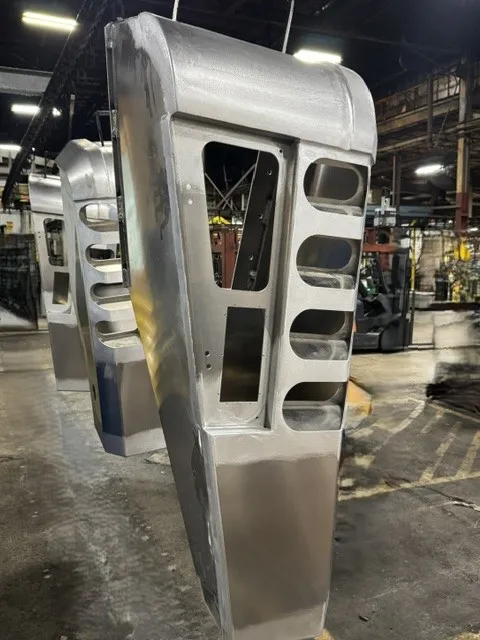

  • Electrocoated part, example 2

Our Process

Niles Manufacturing has two electrocoating lines capable of handling the same size part dimensions.

The first monorail line has a 9-stage zinc phosphate spray system with a 12000-gallon cathodic tank. Capable of handling more robust parts such as castings or heavy duty welded assemblies.

The second monorail line has 10-stage zinc phosphate spray system with an 11000-gallon cathodic tank. This line handles parts that require special film requirements, special packaging, or additional topcoat.

Specifications

  • Maximum Part Dimensions : 30” x 48” x 84”
  • Coating Thickness Range: .5 – 1.2 mils
  • Available colors: Black
  • Typical Lead Time: 3-5 working days from receipt
